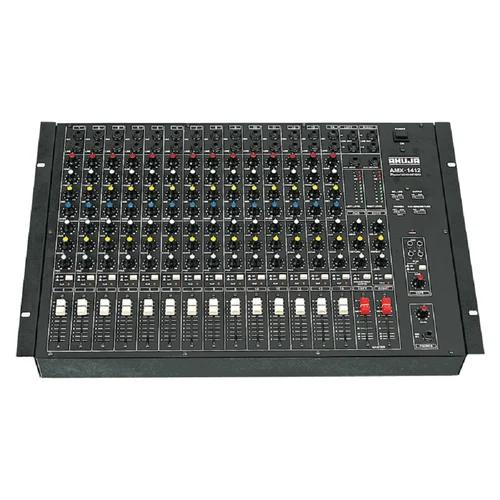

Ahuja AMX 1412 PA Audio Mixing Consoles Stereo
₹20,754.00
Description
| Type | Analog |
| Channel | 10 |
| Brand | Ahuja |
| Usage/Application | Used For Mixing, Balancing, And Combining Different Sounds And Audio Signals |
| Material | ABS Plastic |
| Power | 45W |
| Width | 633mm |
| Model Name/Number | AMX-1412 |
| Color | Black |
| Weight | 9.4 Kg |
| Signal To Noise Ratio | 70dB |
| Dimension(HxD) | 93x420mm |
| Voltage | AC And 24 DC |
| Number Of Channel | 14 |
Product Description:-
AC & 24V DC Operation
- Input Channels : Each channel has separate 1/4” balanced phone jack for Mic and line & accepts both balanced & unbalanced signals.
- AUX control : This controls the level of the channel in the final mix to Aux send output.
- AUX send & AUX return : These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
- Mono/stereo output : Mono output is available from either left & right output jacks when the switch is in ‘Mono’ position.
- Each channel has gain, bass, Mic, treble, echo, PAN and slide level controls with clip LED indicator.
- Echo section provided with delay, repeat & level controls. Tape section for record & playback facility.
- Power requirements:- AC: 220-240V 50/60Hz, dc: 24V (2×12v car battery)
- Mic input (impedance/gain):- 2kω/62db
- Line input (impedance/gain):- 20kω balanced/42db, 10kω unbalanced/42db
- Distortion:- < 0.08%
- Frequency response:- 30hz – 20khz (+0, -1db)
- Tone controls:- Bass : ±12db at 100hz, mid : ±12db at 2khz, treble : ± 12db at 10khz
- Line output LO:- -10dBm/+2dbm (200mv/1v)
- Line output HI:- 0dBm/+17dbm (775mv/5.5v)
- ECHO/reverb system:-digital signal processing
